12VDC, 36" cable output, pivot mounting bracket, 1 inch per second, no feedback.
DETAILED INFORMATION

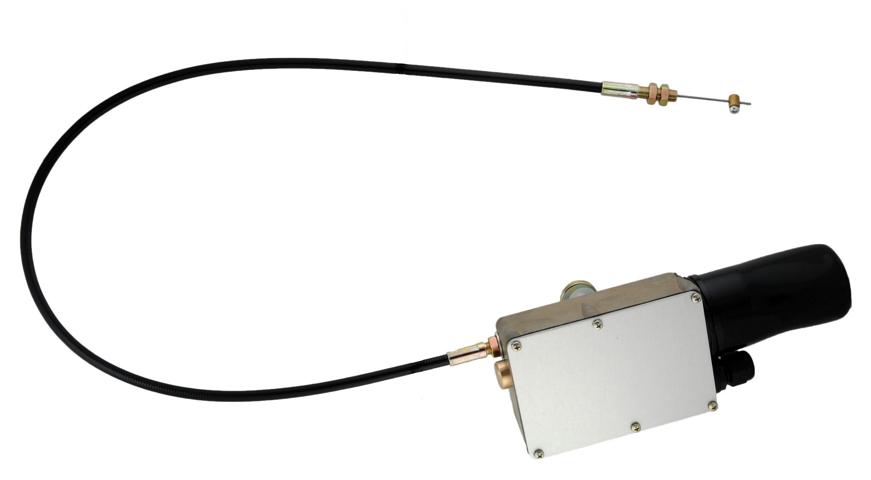

Standard 720 Series actuator, which runs on a 12V source, with an output speed of 1 inch per second. Total stroke length is 3 inches, and this unit has a 36" Push Pull cable as its output. This system works via a 6 pole DPDT toggle switch. Terminal block pin-out:
- Block 1: 12V + to motor (RED WIRE)
- Block 2: 12V - to motor (BLACK WIRE)
- Block 3: Ground to toggle switch (BLUE WIRE)
- Block 4: 12V + to toggle switch (RED WIRE / Toggle switch flips polarity to reverse motor direction.)
- Block 5: 12V - to toggle switch (BLACK WIRE / Toggle switch flips polarity to reverse motor direction.)
ADDITIONAL INFORMATION
- Operating voltage: 12VDC nominal
- Output force: 50-lbs
- Motor current (no load): 1 amp
- Motor current stalled: 7 amps
- Stroke (max): 3 inches
- Stroke speed: 1 inch per second
- Operating temp: -40F to 158F (-40C to 70C)
- Output Type: 36" Push Pull cable
- Mounting bracket: Pivot mount
- Feedback potentiometer: No
- Availability Built to order - 2 Week Lead Time
SPARE PARTS
- 720 Series 12V motor - 027-0460
- 720 Series Circuit Board - 024-0576
- 720 Series Pivot Mount - 001-7867
- 720 Series Motor Boot - 015-0023
- 720 Series Push Pull Cable - 017-0024
