024-0576 - Spare Parts - Circuit Board

  • $103.79
    Unit price per


720 circuit board with two limit switches

DETAILED INFORMATION
This circuit board is for our 720 actuator product line. The circuit board has two limit switches, and a five position terminal block. This circuit board does not have a feedback potentiometer.

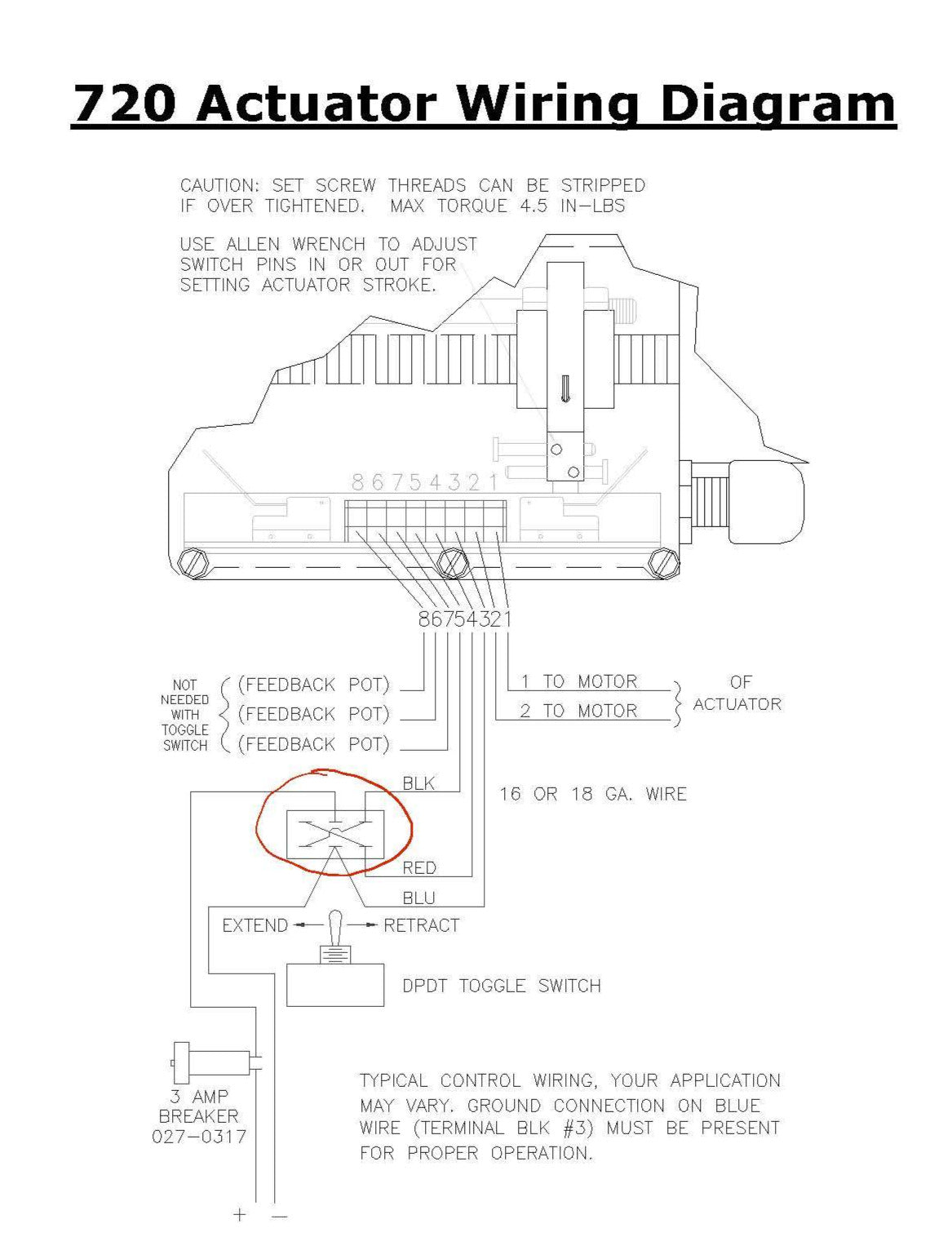

Common terminal block wiring:

  1. Block 1: 12V or 24V + to motor
  2. Block 2: 12V or 24V - to motor
  3. Block 3: Blue Ground wire from control input
  4. Block 4: Red wire from control input
  5. Block 5: Black wire from control input

ADDITIONAL INFORMATION

This item is designed to work with some of our 720 and 721 series actuators. For a list of actuators which already come with this circuit board installed, click the link below:

720 / 721 Series that use the 024-0576 Circuit Board


Product Videos

Product Manual
