772-0101 - Controllers - 772 Proportional

  • $510.42
    Unit price per

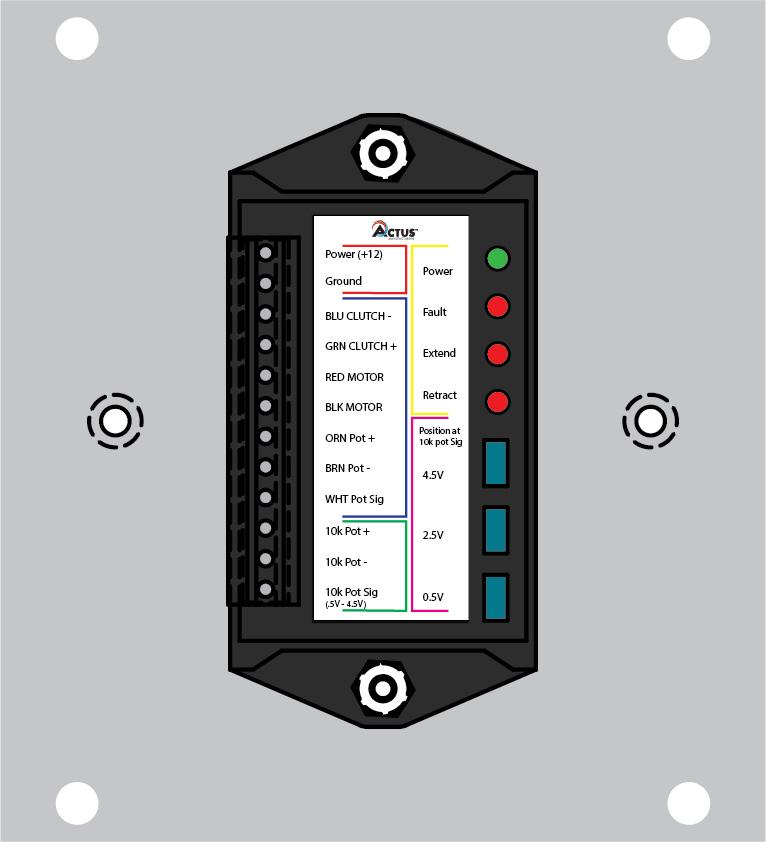

Proportional Controller, female Deutsch connector

DETAILED INFORMATION

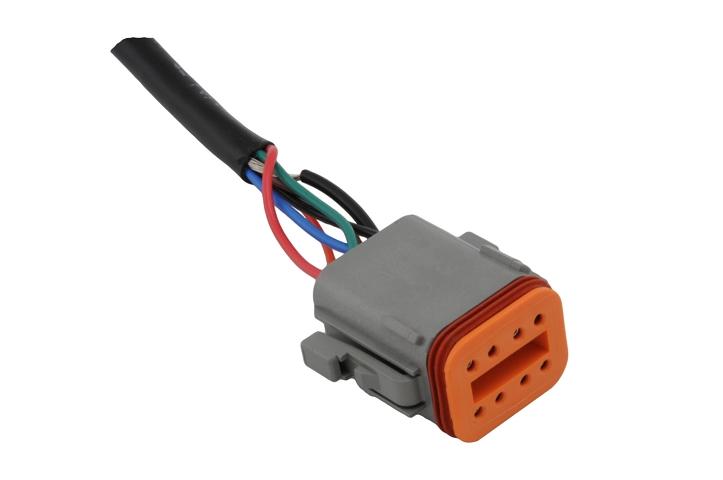

Proportional Electronics, a replacement for a 001-4622 fully proportional electronics with 8 pin Deutsch connector. Works with any foot pedal or joystick that operates with a 10K pot. This controller has the same functionality as the previous model. It comes with an adapting mounting plate so it will fit your existing mounting holes. Connector Pin-out:

  • 1 - Orange
  • 2 - White
  • 3 - Brown
  • 4 - Shield Drain
  • 5 - Black
  • 6 - Blue
  • 7 - Green
  • 8 - Red


ADDITIONAL INFORMATION

  • Operating Voltage 12VDC
  • Availability: Build to order / 1 week lead time (average)

COMPATIBLE ACTUATORS
