771-0106 - Controllers - 771 Positional

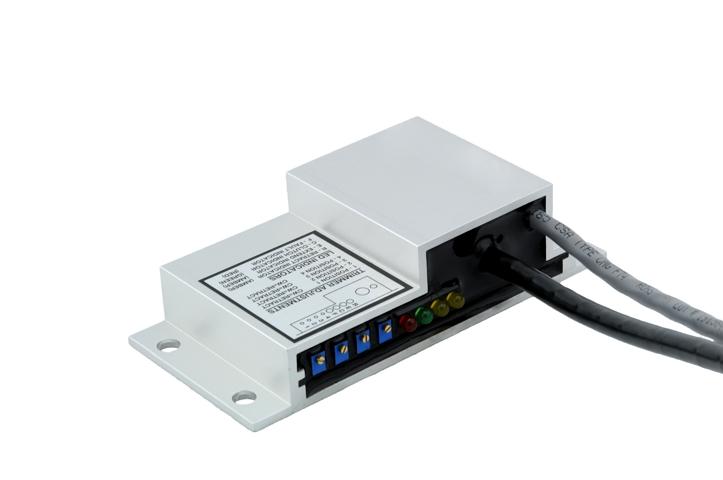

Positional electronics, no connector

DETAILED INFORMATION

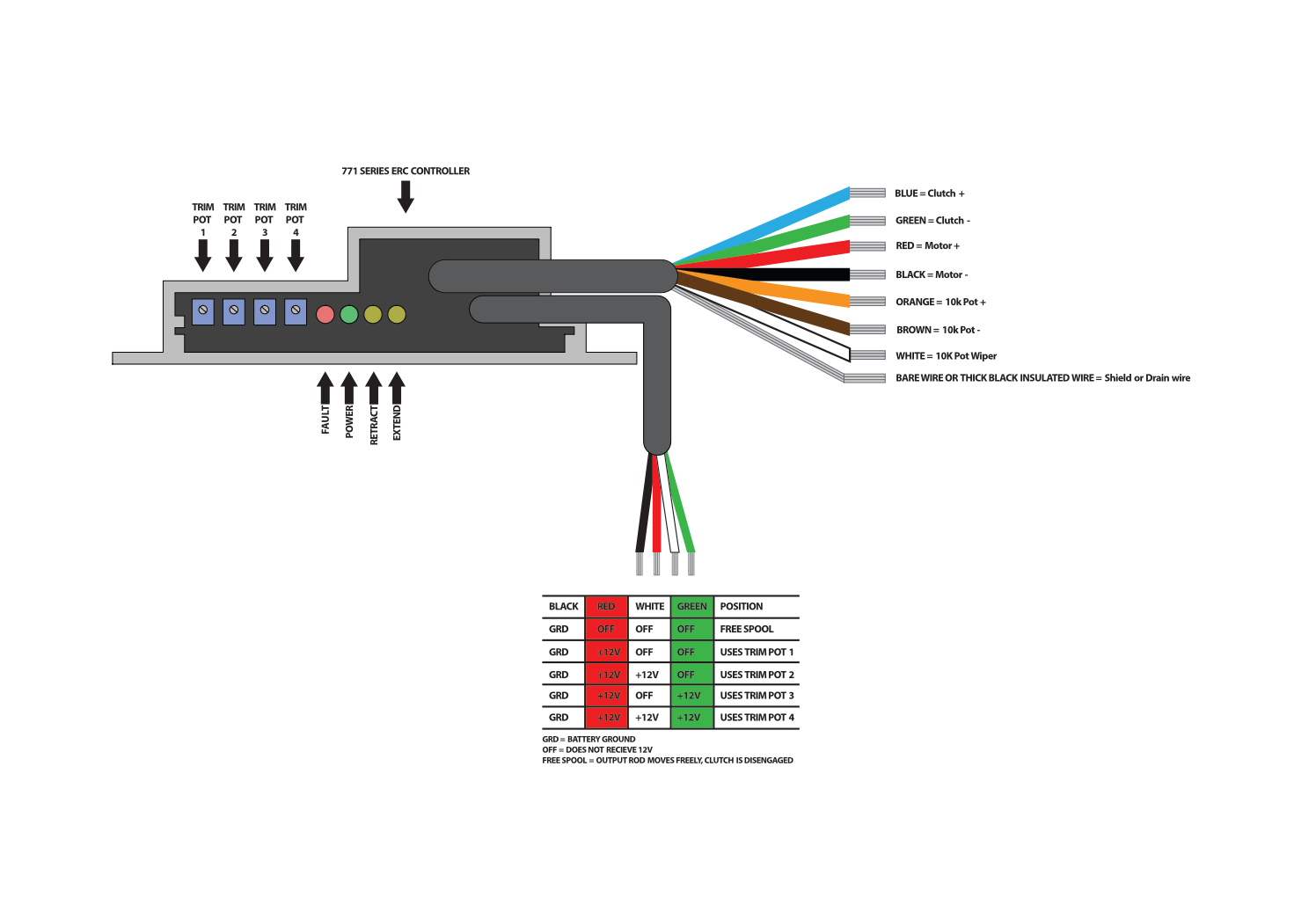

Positional Electronics, 5 independently adjustable positions, with bare wire ends. Wires:

• Orange
• White
• Brown
• Shield Drain
• Black
• Blue
• Green
• Red

ADDITIONAL INFORMATION

• Operating Voltage 12VDC
• Availability: Build to order / 1 week lead time (average)

COMPATIBLE ACTUATORS

• 722-0102 (722 Series)

• 723-0102 (723 Series)
