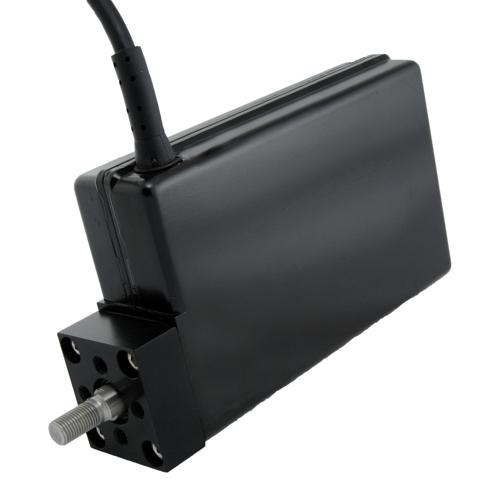

723-0105 - Actuators - 723 Series

12VDC, clutch, 10k feedback potentiometer, 1.5 inches per second, no connector, 2.25 inches of stroke

DETAILED INFORMATION
Standard 723 Series ERC Actuator with no connector and 2.25 inches of stroke. This actuator requires a controller to operate. You can design your own or use an Actus positional or proportional controller. Connector pin-out:

1. 1Orange
2. White
3. Brown
4. Shield Drain
5. Black
6. Blue
7. Green
8. Red

ADDITIONAL INFORMATION

• Operating Voltage 12VDC
• Motor Current (no load) 2.25 amps
• Motor Current Stalled 18 amps
• Operating Temperature -40F to 158F (-40C to 70C)
• Availability: 3 week lead time

COMPATIBLE CONTROLLERS

• 771-0106 Positional Controller
• 772-0100 Proportional Controller
