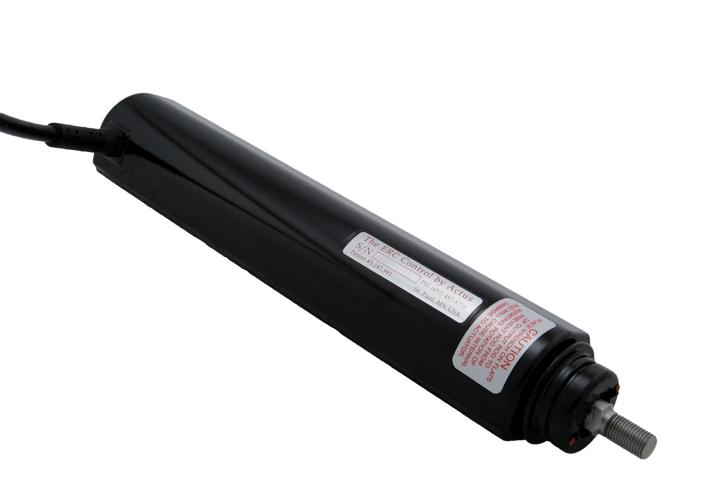

722-0102 - Actuators - 722 Series

12VDC, clutch, 10k feedback potentiometer, 3 inches per second, bare wire ends.

DETAILED INFORMATION

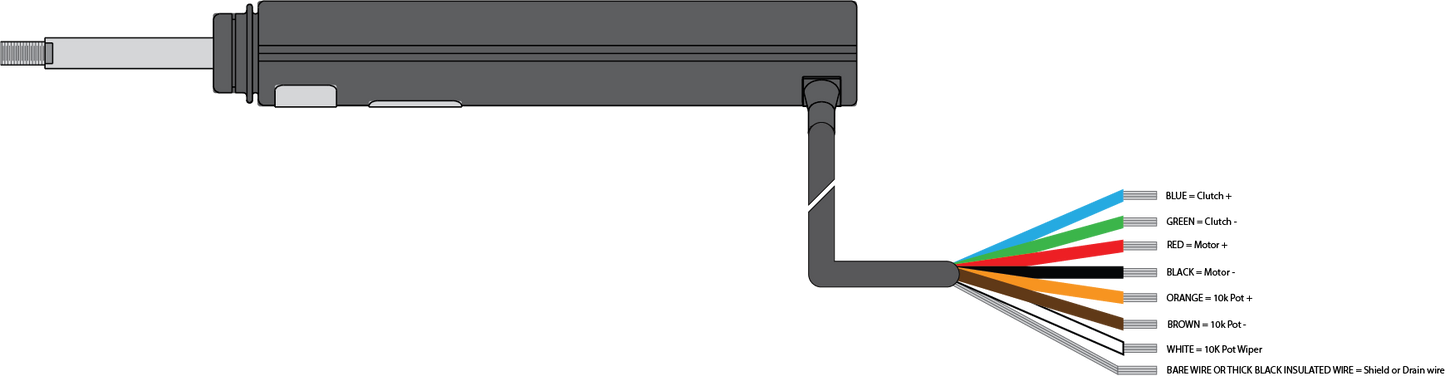

Standard 722 Series Actuator without a connector. 722 Series ERC Actuator This actuator requires a controller to operate. You can design your own or use an Actus positional or proportional controller. Connector pin-out:

1. Orange
2. White
3. Brown
4. Shield Drain
5. Black
6. Blue
7. Green
8. Red

ADDITIONAL INFORMATION

• Operating Voltage 12VDC
• Motor Current (no load) 2.25 amps
• Motor Current Stalled 18 amps
• Operating Temperature -40F to 158F (-40C to 70C)
• Availability: 2 week lead time
