721-0123 - Actuators - 720 Series

721-0123 - Actuators - 720 Series

Regular price $971.82 USD
Regular price Sale price $971.82 USD
Sale Sold out

24VDC, 72" cable output, 0.07 inches per second, no feedback, no mounting hardware.

DETAILED INFORMATION

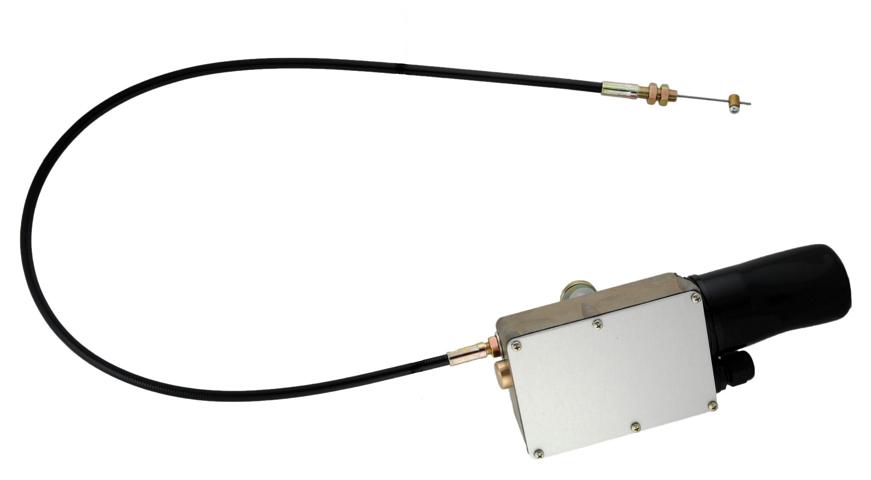

Standard 721 Series actuator, which runs on a 24V source, with an output speed of 0.07 an inch per second. Total stroke length is 3 inches, and this unit has a 72" Push Pull cable as its output. This system works via a 6 pole DPDT toggle switch. Terminal block pin-out:

  • Block 1: 12V + to motor (RED WIRE)
  • Block 2: 12V - to motor (BLACK WIRE)
  • Block 3: Ground to toggle switch (BLUE WIRE)
  • Block 4: 12V + to toggle switch (RED WIRE / Toggle switch flips polarity to reverse motor direction.)
  • Block 5: 12V - to toggle switch (BLACK WIRE / Toggle switch flips polarity to reverse motor direction.)


ADDITIONAL INFORMATION

  • Operating voltage: 24VDC nominal
  • Output force: 50-lbs
  • Motor current (no load): 1 amp
  • Motor current stalled: 7 amps
  • Stroke (max): 3 inches
  • Stroke speed: 0.07 inch per second
  • Operating temp: -40F to 158F (-40C to 70C)
  • Output Type: 72" Push Pull cable
  • Mounting bracket: None
  • Feedback potentiometer: No
  • Availability: Built to order - 2 week Lead Time
