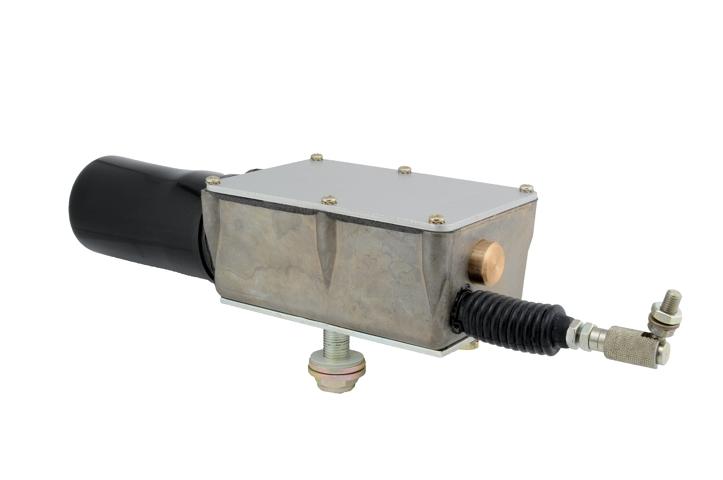

721-0104 - Actuators - 721 Series

721-0104 - Actuators - 721 Series

Regular price $814.42 USD
Regular price Sale price $814.42 USD
Sale Sold out
24VDC, rod output, pivot mounting bracket, 1/2 inches second, 1K Feedback Potentiometer.

DETAILED INFORMATION
Operating voltage: 24VDC nominal Output force: 50-lbs Motor current (no load): 1 amp Motor current stalled: 7 amps Stroke (max): 3 inches Stroke speed: 1/2 inch per second Operating temp: -40F to 158F (-40C to 70C) Output: Rod Mounting bracket: Pivot mount Feedback potentiometer: 1K

ADDITIONAL INFORMATION
Operating Voltage 24VDC Motor Current (no load) 1A Motor Current Stalled 7A Availability Non-Stock - Please contact factory
