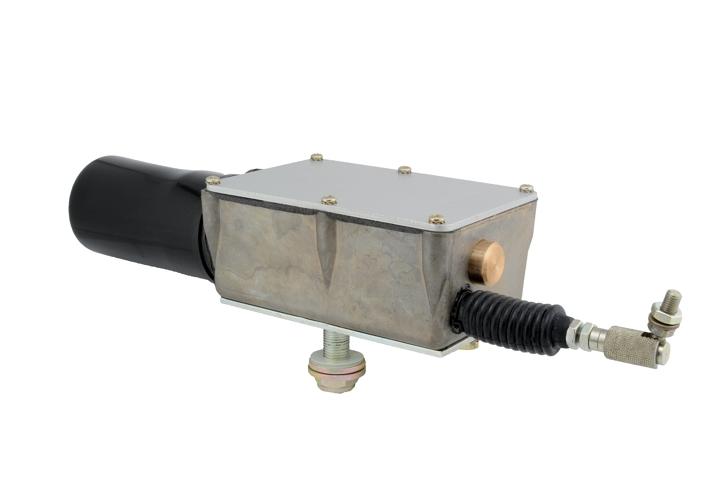

721-0102 - Actuators - 721 Series

24VDC, rod output, pivot mounting bracket, 1/2 inches per second, 1K feedback

DETAILED INFORMATION
Standard 720 Series actuator, which runs on a 24V source, with an output speed of 0.5 inches per second, and a 1K feedback poteniometer. Total stroke length is 3 inches. This system works via a 6 pole DPDT toggle switch. Terminal block pin-out:

• Block 1: 12V + to motor (RED WIRE)
• Block 2: 12V - to motor (BLACK WIRE)
• Block 3: Ground to toggle switch (BLUE WIRE)
• Block 4: 12V + to toggle switch (RED WIRE / Toggle switch flips polarity to reverse motor direction.)
• Block 5: 12V - to toggle switch (BLACK WIRE / Toggle switch flips polarity to reverse motor direction.)
• Block 6: POT WIPER from on-board FEEDBACK POTENTIOMETER (WHITE WIRE)
• Block 7: POT + from on-board FEEDBACK POTENTIOMETER (ORANGE WIRE)
• Block 6: POT - from on-board FEEDBACK POTENTIOMETER (BROWN WIRE)

ADDITIONAL INFORMATION

• Operating voltage: 24VDC nominal
• Output force: 50-lbs
• Motor current (no load): 1 amp
• Motor current stalled: 7 amps
• Stroke (max): 3 inches
• Stroke speed: 0.5 inches per second
• Operating temp: -40F to 158F (-40C to 70C)
• Output Type: Rod
• Mounting bracket: Pivot mount
• Feedback potentiometer: 1K
• Availability: Built to order - Contact Factory
