721-0100 - Actuators - 721 Series

721-0100 - Actuators - 721 Series

  • $647.13
    Unit price per


24VDC, rod output, pivot mounting bracket, 1/2 inches per second, no feedback

DETAILED INFORMATION

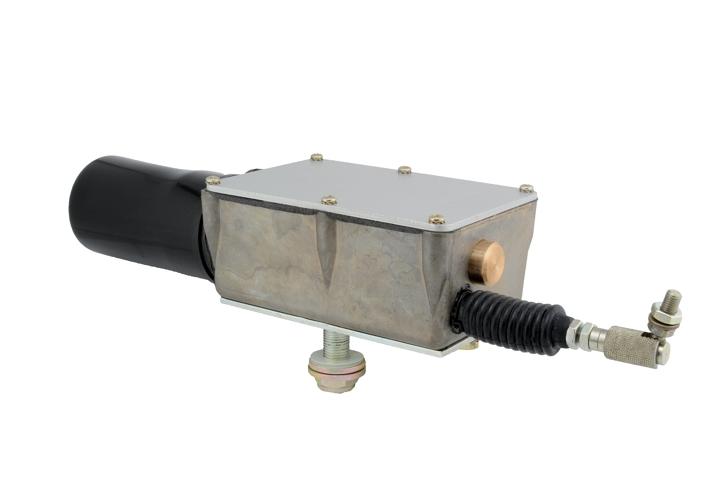

Standard 720 Series actuator, which runs on a 24V source, with an output speed of 0.5 inches per second. Total stroke length is 3 inches. This system works via a 6 pole DPDT toggle switch. Terminal block pin-out:

  • Block 1: 12V + to motor (RED WIRE)
  • Block 2: 12V - to motor (BLACK WIRE)
  • Block 3: Ground to toggle switch (BLUE WIRE)
  • Block 4: 12V + to toggle switch (RED WIRE / Toggle switch flips polarity to reverse motor direction.)
  • Block 5: 12V - to toggle switch (BLACK WIRE / Toggle switch flips polarity to reverse motor direction.)


ADDITIONAL INFORMATION

  • Operating voltage: 24VDC nominal
  • Output force: 50-lbs
  • Motor current (no load): 1 amp
  • Motor current stalled: 7 amps
  • Stroke (max): 3 inches
  • Stroke speed: 0.5 inches per second
  • Operating temp: -40F to 158F (-40C to 70C)
  • Output Type: Rod
  • Mounting bracket: Pivot mount
  • Feedback potentiometer: No
  • Availability: Built to order - 2 week Lead Time
