720-0218 - Actuators - 720 Series

720-0218 - Actuators - 720 Series

Regular price $875.89 USD
Regular price Sale price $875.89 USD
Sale Sold out

12VDC, 36" cable output, pivot mounting bracket, .07 inches per second, no feedback, 3 Position Relay system.

DETAILED INFORMATION

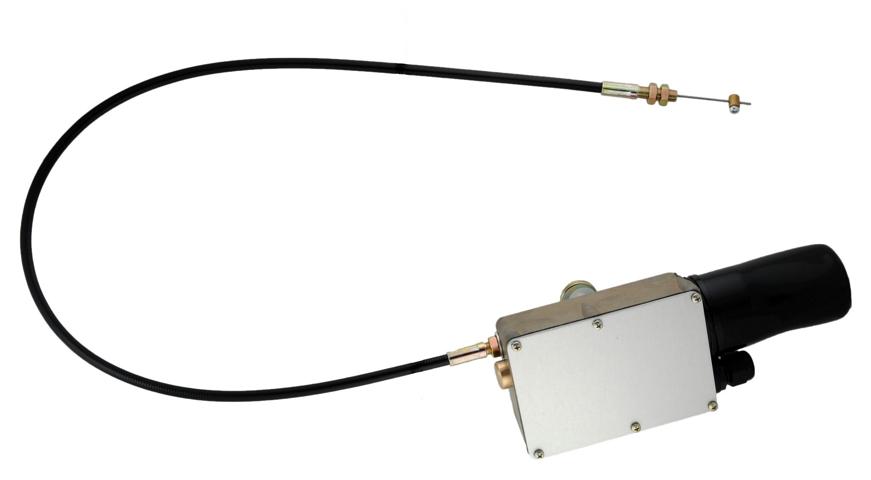

Standard 720 Series actuator, which runs on a 12V source, with an output speed of 0.07 an inch per second. Total stroke length is 3 inches, and this unit has a 36" Push Pull cable as its output. This system works via connecting Terminals to a Common Ground as seen in the Terminal block pin-out:

  • Block 1: 12V + to motor (RED WIRE)
  • Block 2: 12V - to motor (BLACK WIRE)
  • Block 3: Ground Wire
  • Block 4: 12V + VDC
  • Block 5: Connect to Ground to retract actuator.
  • Block 6: Connect to Ground to mid-stroke actuator.
  • Block 7: Connect to Ground to extend actuator.

!!! DO NOT CONNECT MORE THAN ONE OF THE 3 POSITION WIRES (TERMINALS 5, 6 , or 7) TO GROUND AT ONE TIME, AS IT MAY DAMAGE THE ACTUATOR. ALL GROUNDS MUST BE COMMON FOR ACTUATOR TO FUNCTION PROPERLY. !!!


ADDITIONAL INFORMATION

  • Operating voltage: 12VDC nominal
  • Output force: 50-lbs
  • Motor current (no load): 1 amp
  • Motor current stalled: 7 amps
  • Stroke (max): 3 inches
  • Stroke speed: 0.07 inch per second
  • Operating temp: -40F to 158F (-40C to 70C)
  • Output Type: 36" Push Pull cable
  • Mounting bracket: Pivot mount
  • Feedback potentiometer: No
  • Availability: Built to order - 2 week Lead Time
