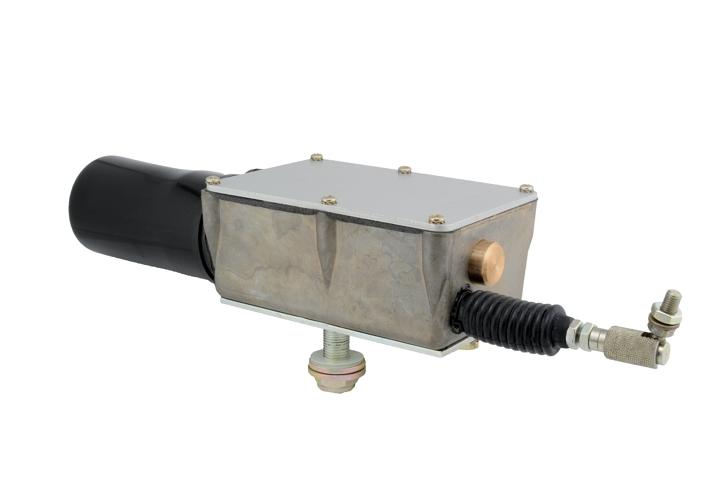

720-0193 - Actuators - 720 Series
720-0193 - Actuators - 720 Series
Regular price
$710.38 USD
Regular price
Sale price
$710.38 USD
Unit price
/
per
12VDC, rod output, pivot mounting bracket, 1/2 inches second, 2 inch long stroke limiting rivets, no feedback.
DETAILED INFORMATION
Standard 720 Series actuator, which runs on a 12V source, with an output speed of 1/2 an inch per second. Total stroke length is 3 inches. This system works via a 6 pole DPDT toggle switch. Terminal block pin-out:
- Block 1: 12V + to motor (RED WIRE)
- BLock 2: 12V - to motor (BLACK WIRE)
- Block 3: Ground to toggle switch (BLUE WIRE)
- Block 4: 12V + to toggle switch (RED WIRE / Toggle switch flips polarity to reverse motor direction.)
- Block 5: 12V - to toggle switch (BLACK WIRE / Toggle switch flips polarity to reverse motor direction.)
ADDITIONAL INFORMATION
- Operating voltage: 12VDC nominal
- Output force: 50-lbs
- Motor current (no load): 1 amp
- Motor current stalled: 7 amps
- Stroke (max): 3 inches (Limited via adjustable 2inch rivets)
- Stroke speed: 1/2 inch per second
- Operating temp: -40F to 158F (-40C to 70C)
- Output Type: Rod
- Mounting bracket: Pivot mount
- Feedback potentiometer: No
- Availability Built to order - 2 week Lead Time
