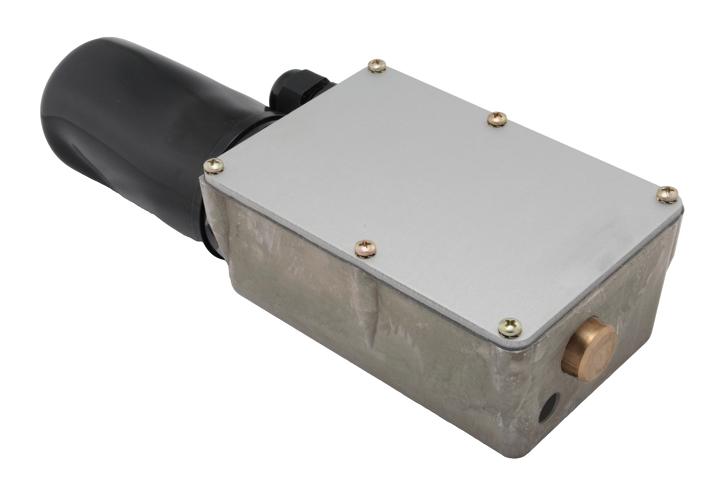

720-0185 - Actuators - 720 Series

720-0185 - Actuators - 720 Series

Regular price $626.13 USD
Regular price Sale price $626.13 USD
Sale Sold out
12VDC, no output, no mounting bracket, .07 inch per second, no feedback

DETAILED INFORMATION
Operating voltage: 12VDC nominal Output force: 50-lbs Motor current (no load): 1 amp Motor current stalled: 7 amps Stroke (max): 3 inches Stroke speed: .07 inch per second Operating temp: -40F to 158F (-40C to 70C) Output: None Mounting bracket: None Feedback potentiometer: No

ADDITIONAL INFORMATION
Operating Voltage 12VDC Motor Current (no load) 1A Motor Current Stalled 7A Operating Temperature -40F to 158F (-40C to 70C) Availability Built to order - 1 Week Lead Time

SPARE PARTS
Motor: 024-0543 Circuit board: 024-0576 Motor Boot: 015-0023
