720-0178 - Actuators - 720 Series

12VDC, 16" cable output, shock mount, 1/2 inches per second, no feedback.

DETAILED INFORMATION

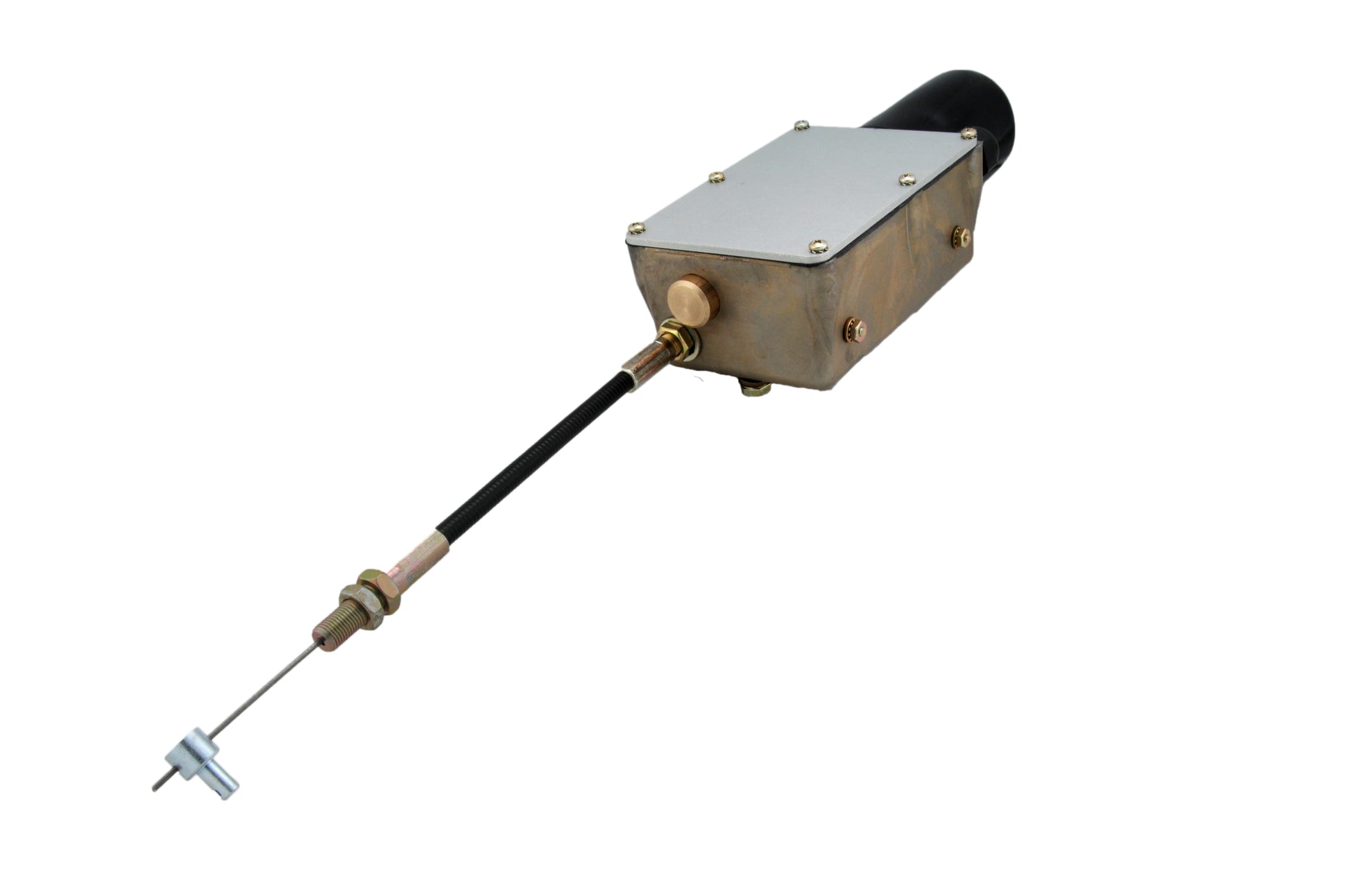

Standard 720 Series actuator, which runs on a 12V source, with an output speed of 1/2 an inch per second. Total stroke length is 3 inches, and this unit has a 16" Push Pull cable as its output. This system works via a 6 pole DPDT toggle switch. Terminal block pin-out:

• Block 1: 12V + to motor (RED WIRE)
• Block 2: 12V - to motor (BLACK WIRE)
• Block 3: Ground to toggle switch (BLUE WIRE)
• Block 4: 12V + to toggle switch (RED WIRE / Toggle switch flips polarity to reverse motor direction.)
• Block 5: 12V - to toggle switch (BLACK WIRE / Toggle switch flips polarity to reverse motor direction.)

ADDITIONAL INFORMATION

• Operating voltage: 12VDC nominal
• Output force: 50-lbs
• Motor current (no load): 1 amp
• Motor current stalled: 7 amps
• Stroke (max): 3 inches
• Stroke speed: 1/2 inch per second
• Connector: 3 Pin Packard (female)
• Operating temp: -40F to 158F (-40C to 70C)
• Output Type: 16" Push Pull cable
• Mounting bracket: Shock mount
• Feedback potentiometer: No
• Availability: Built to order - 2 week Lead Time
