720-0165 - Actuators - 720 Series

Name: 720-0165 - Actuators - 720 Series
Brand: Actus
SKU: 720-0165
Price: 893.25 USD
Availability: InStock

$893.25 USD

Sale Sold out

Quantity

12VDC, 36" cable output, pivot mounting bracket, 0.15 inches per second, 1K feedback.

ADDITIONAL INFORMATION

Operating voltage: 12VDC nominal
Output force: 50-lbs
Motor current (no load): 1 amp
Motor current stalled: 7 amps
Stroke (max): 3 inches
Stroke speed: 0.15 inch per second
Operating temp: -40F to 158F (-40C to 70C)
Output Type: 36" Push Pull cable
Mounting bracket: Pivot mount
Feedback potentiometer: 1K
Availability Built to order - 14 Day Lead Time

DETAILED INFORMATION

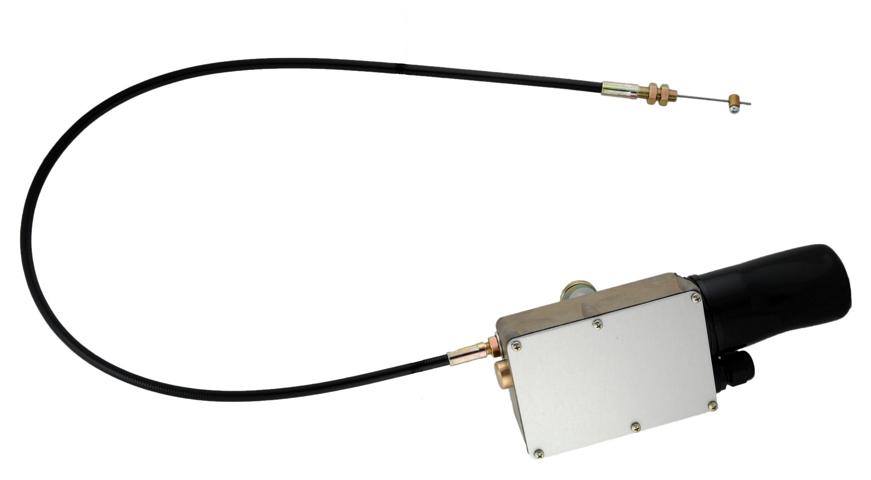

Standard 720 Series actuator, which runs on a 12V source, with an output speed of 1/2 an inch per second. Total stroke length is 3 inches, and this unit has a 36" Push Pull cable as its output. This system works via a 6 pole DPDT toggle switch.
