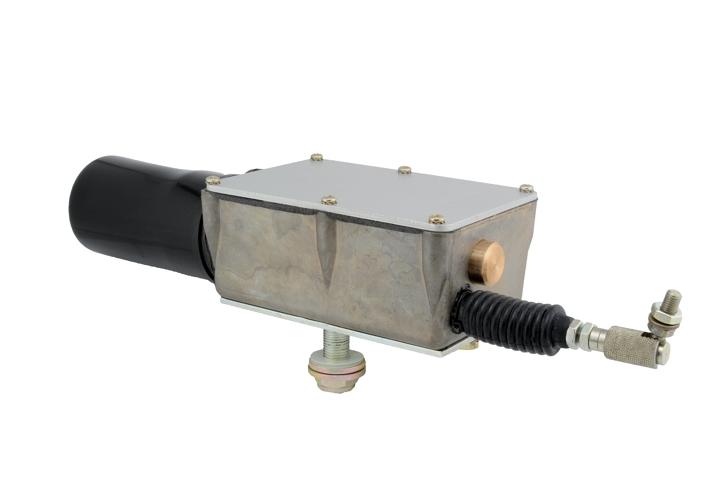

720-0148 - Actuators - 720 Series
720-0148 - Actuators - 720 Series
Regular price
$678.65 USD
Regular price
Sale price
$678.65 USD
Unit price
per
Couldn't load pickup availability
12VDC, Rod output, pivot mounting, .07 inches per second, no feedback
DETAILED INFORMATION
Operating voltage: 12VDC nominal Output force: 50-lbs Motor current (no load): 1 amp Motor current stalled: 7 amps Stroke (max): 3 inches Stroke speed: .07 inch per second Operating temp: -40F to 158F (-40C to 70C) Output: Rod Mounting bracket: pivot mount Feedback potentiometer: No
ADDITIONAL INFORMATION
Operating Voltage 12VDC Motor Current (no load) 1A Motor Current Stalled 7A Operating Temperature -40F to 158F (-40C to 70C) Availability Built to order - 1 Week Lead Time
SPARE PARTS
Motor: 027-0543 Circuit board: 024-0576 Mount: 001-7867 Motor boot: 015-0023 Rod bellows: 027-0314 Ball joint: 027-0597
