720-0147 - Actuators - 720 Series

720-0147 - Actuators - 720 Series

  • $680.47
    Unit price per

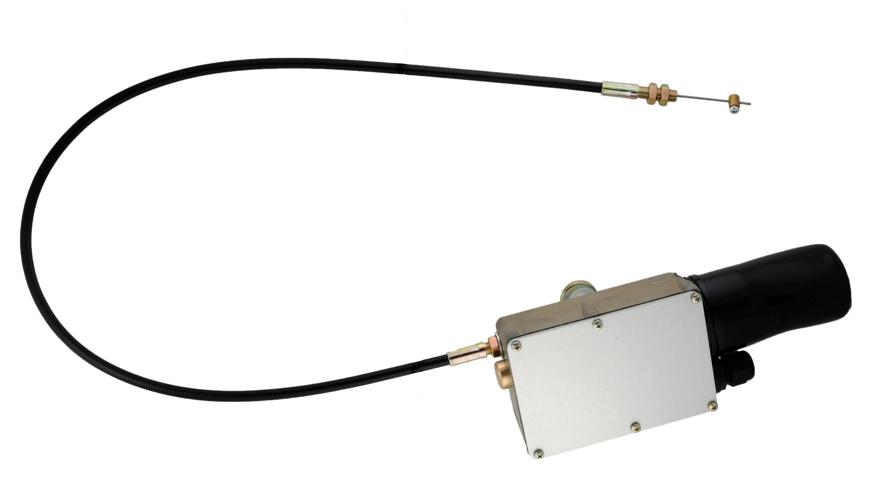

12VDC, 36" push pull cable, pivot mounting, 1/2 inches per second

DETAILED INFORMATION
Operating voltage: 12VDC nominal Output force: 50-lbs Motor current (no load): 1 amp Motor current stalled: 7 amps Stroke (max): 3 inches Stroke speed: 1/2 inch per second Operating temp: -40F to 158F (-40C to 70C) Output: 36" Push Pull cable Mounting bracket: pivot mount Feedback potentiometer: No

ADDITIONAL INFORMATION
Operating Voltage 12VDC Motor Current (no load) 1 amp Motor Current Stalled 7 amps Operating Temperature -40F to 158F (-40C to 70C) Availability Built to order - 3 Day Lead Time

SPARE PARTS
Motor: 027-0315 Circuit board: 024-0576 Mount: 001-7867 Motor Boot: 015-0023 Push-pull cable: 017-0024
