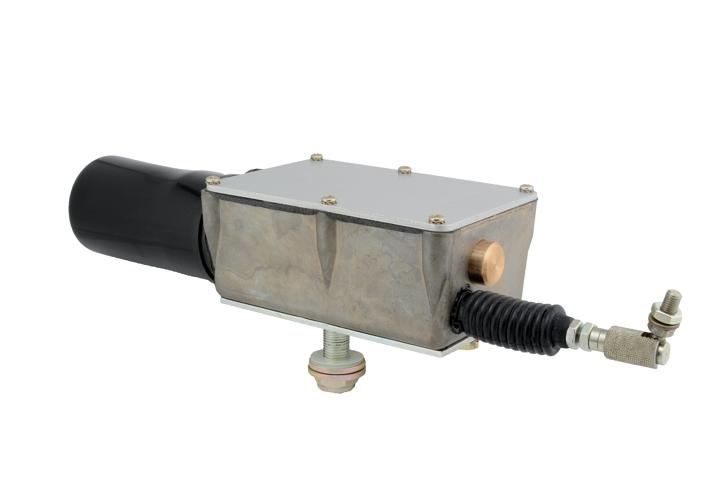

720-0142 - Actuators - 720 Series

720-0142 - Actuators - 720 Series

  • $611.79
    Unit price per


12VDC, Rod output, Pivot mounting bracket, 1 inch per second, no feedback

DETAILED INFORMATION
Operating voltage: 12VDC nominal Output force: 50-lbs Motor current (no load): 1 amp Motor current stalled: 7 amps Stroke (max): 3 inches Stroke speed: 1iinch per second Operating temp: -40F to 158F (-40C to 70C) Output: Rod Mounting bracket: Pivot mount Feedback potentiometer: No

ADDITIONAL INFORMATION
Operating Voltage 12VDC Motor Current (no load) 1A Motor Current Stalled 7A Operating Temperature -40F to 158F (-40C to 70C) Availability Built to order - 1 Week Lead Time

SPARE PARTS
Motor:027-0460 Circuit board: 024-0576 Mount: 001-7867 Motor boot: 015-0023 Rod bellows: 027-0314 Ball joint: 027-0597
