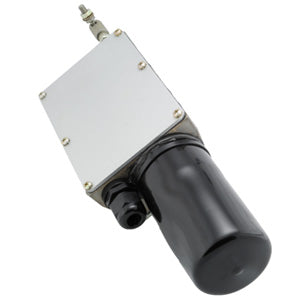

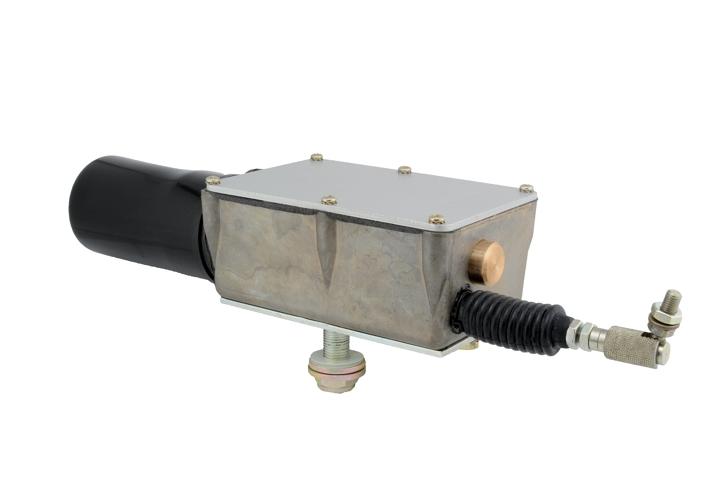

720-0104 - Actuators - 720 Series

Standard 720 Series actuator, which runs on a 12V source, with an output speed of 1/2 an inch per second. Total stroke length is 3 inches.

• Operating voltage: 12VDC nominal
• Output force: 50-lbs
• Motor current (no load): 1 amp
• Motor current stalled: 7 amps
• Stroke (max): 3 inches
• Stroke speed: 1/2 inch per second
• Operating temp: -40F to 158F (-40C to 70C)
• Output Type: Rod
• Mounting bracket: Pivot mount
• Feedback potentiometer: No
• Availability Built to order - 2 Day Lead Time
