2910000 - Actuators - 722 Series

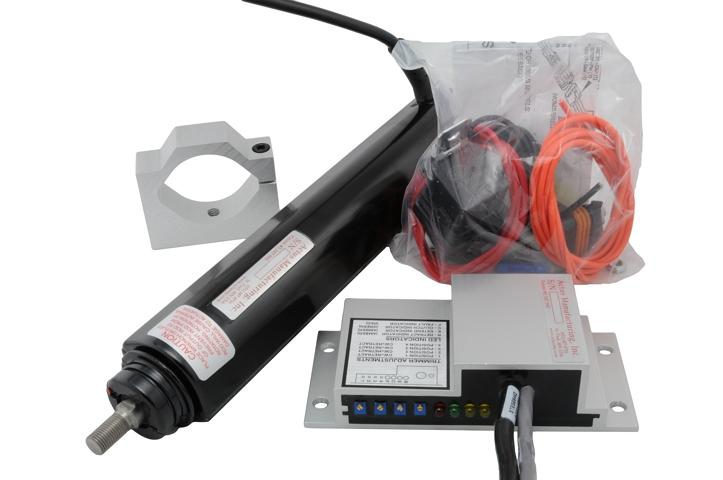

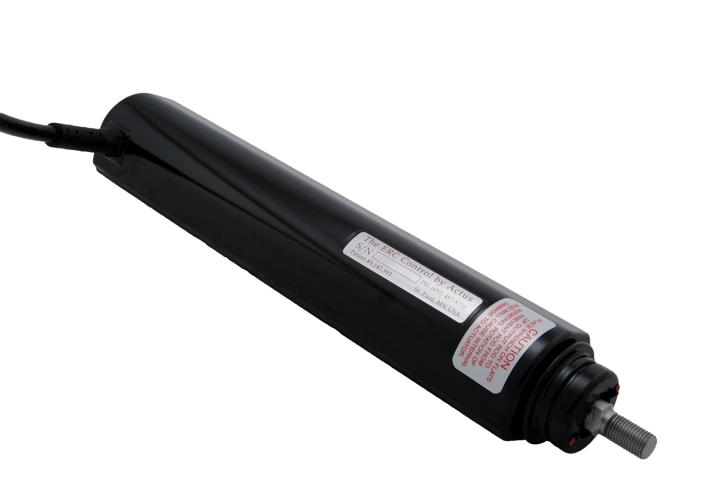

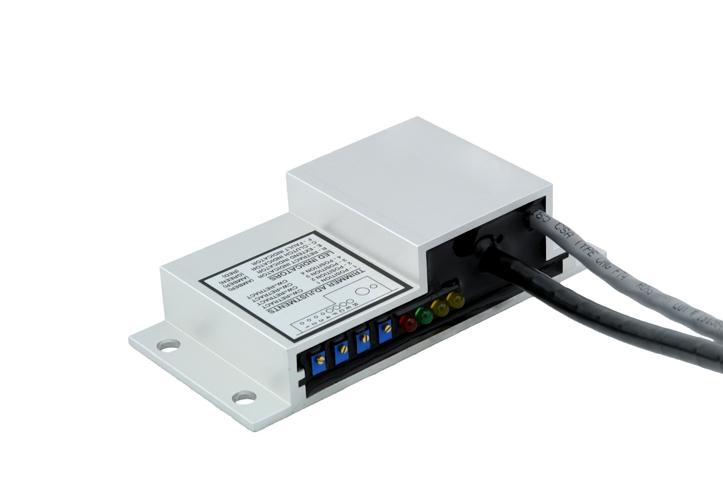

This kit contains: 001-5523 Actuator, 001-5524 positional electronics, 001-2409 actuator mount, wire and relays.

DETAILED INFORMATION

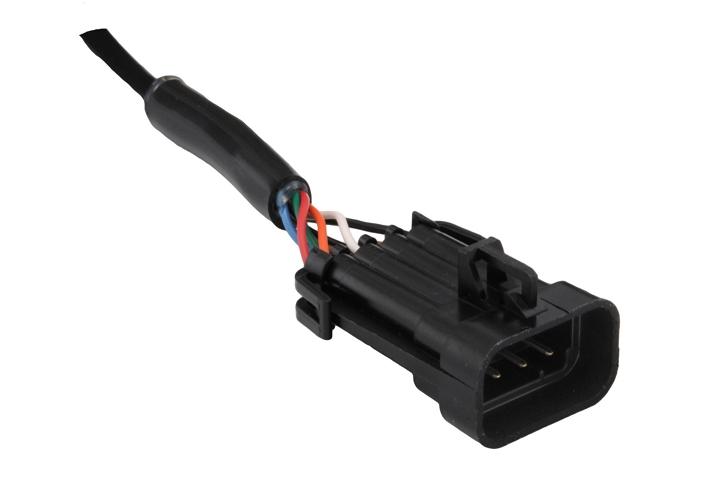

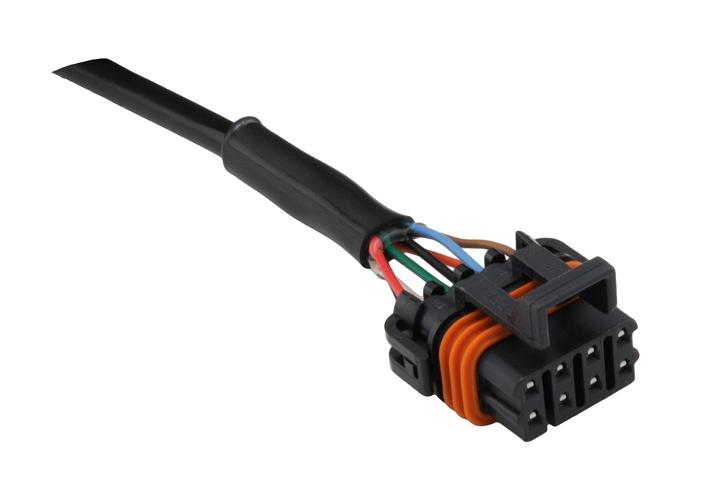

This Positional ERC system includes mated Packard connectors, plus mounting clamp and hardware, and a wiring kit with relays. 722 Actuator and Positional Electronics Connector and Actuator pin-out:

1. A - Red
2. B - Green
3. C - Blue
4. D - Black
5. E - Shield Drain
6. F - Brown
7. G - White
8. H - Orange

ADDITIONAL INFORMATION

• Operating Voltage 12VDC
• Motor Current (no load) 2.25 amps
• Motor Current Stalled 18 amps
• Operating Temperature -40F to 158F (-40C to 70C)
• Availability: Build-to-order, 3-4 week lead time
