150-0100 - Hand Controls

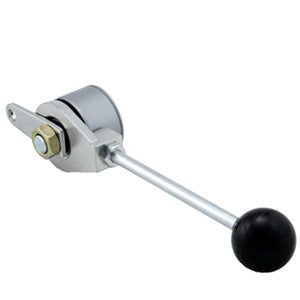

150-0100 standard hand control assembly

DETAILED INFORMATION

With the 150 Series hand lever control, you put control in the palm of your hand. The 150 series is an extremely durable push-pull control providing smooth movement with very low friction. With very little push-pull force required, you have infinite positioning in a complete 360 arc at your finger tips. When the control is in its “locked” positions it won’t slip like some “friction” style levers. Several available output lever and mounting options allow for ease of installation. The 150 series has proven itself in a multitude of applications for over 30 years.

ADDITIONAL INFORMATION

• MAX LOCKING FORCE: 400 LBS
• LEVER ROTATION FORCE: 6 LBS
• LEVER RANGE: 360 DEGREES

• WEIGHT: 2.56 LBS
• CONSTRUCTION:
  • Forged stainless steel housing
  • Corrosion resistance
  • Sealed construction
  • Dust proof and splash proof
• AVAILABILITY: 1 week lead time
