001-8680 - Wireless Control Valve - 2-Function

001-8680 - Wireless Control Valve - 2-Function

Regular price $995.00 USD
Regular price Sale price $995.00 USD
Sale Sold out

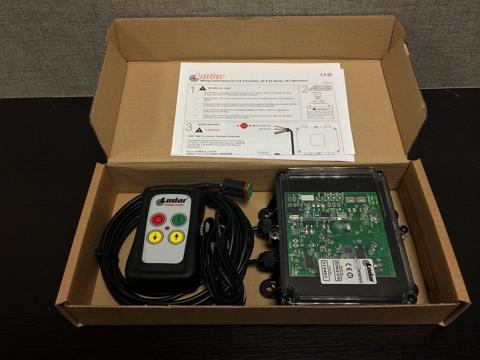

2-Function Wireless Control Valve System will allow you to control a hydraulic hand lever remotely. The system comes complete with an actuator, a wireless controller, and all the mounting hardware.

PRODUCT DESCRIPTION
2-Function Wireless Hydraulic Control Valve System will allow you to control a hydraulic hand lever remotely. The system comes complete with an actuator, a wireless controller, and all the mounting hardware. Connector pin-out:

  1. Red - 12VDC to motor
  2. Black - Ground to motor
  3. Green - 12VDC to clutch
  4. White - Ground to clutch


ACTUATOR SPECIFICATIONS

  • Operating voltage: 10.3 – 16 VDC, 12VDC nominal
  • Output Force (Dynamic) Load: 60-lbf @ 3 amp (267 N)
  • Output Force (Holding) Load: 150 lbs (68 kg)
  • Motor current (at rated load): 2.25 amps
  • Motor locked rotor current: 18 amps
  • Clutch current: 0.6 amp
  • Stroke (max): 2.5 inches (63.5 mm)
  • Maximum no load speed: 1.5 inches/second (38.1 mm/s)
  • Weight: 3.6-lbs (1.6 kg)
  • Operating Temp Range: -40°F to 158°F (-40°C to 70°C)
  • Mounting: Pivot mount
  • Construction: Aluminum die cast housing E-coated for corrosion resistance
  • Permanently lubricated metal gear drive
  • Stainless steel output shaft
  • Sealed construction
  • Dust proof and splash proof
  • Industrial grade rod seal
  • 4-start
  • Availability: Built-to-order. (3 week lead time)
