001-4624 - Controllers - 771 Positional

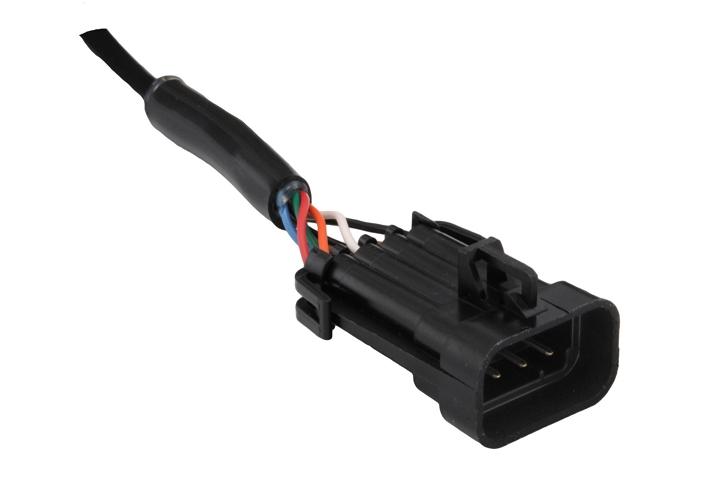

Positional electronics, (black) male 8-pin Packard connector

DETAILED INFORMATION
Positional Electronics, 5 independently adjustable positions, with a (black) male 8-pin Packard connector. Connector pin-out:

A) Orange
B) Black
C) White
D) Shield Drain
E) Red
F) Green
G) Blue
H) Brown

COMPATIBLE ACTUATORS

• 001-4623 (722 Series)
