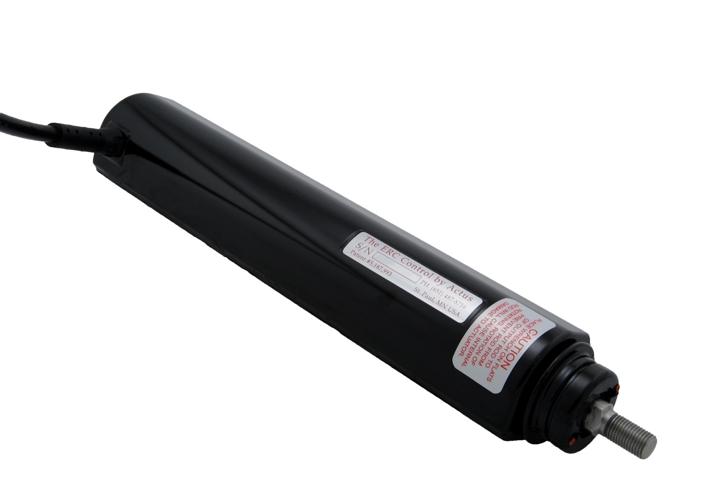

001-4623 - Actuators - 722 Series

  • $474.55
    Unit price per


12VDC, clutch, 10k feedback potentiometer, 3 inches per second, (black) female 8-pin Packard connector

DETAILED INFORMATION

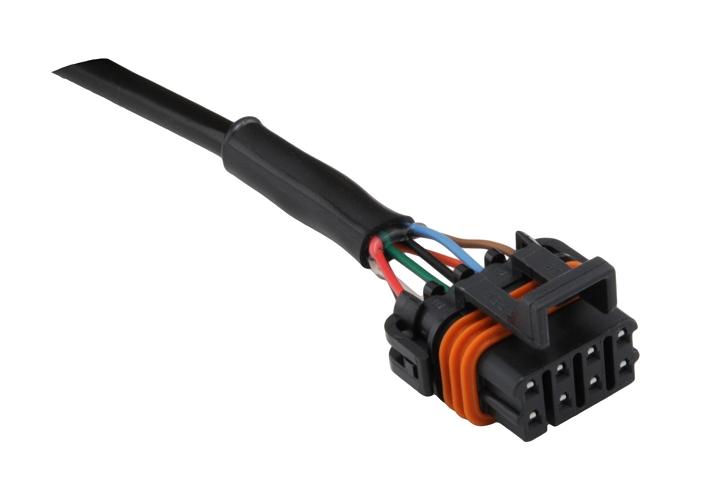

Standard 722 Series ERC Actuator with a (black) female 8-pin Packard connector. This actuator requires a controller to operate. You can design your own or use an Actus positional or proportional controller. Connector pin-out:

  1. Orange
  2. Black
  3. White
  4. Shield Drain
  5. Red
  6. Green
  7. Blue
  8. Brown


ADDITIONAL INFORMATION

  • Operating Voltage 12VDC
  • Motor Current (no load) 2.25 amps
  • Motor Current Stalled 18 amps
  • Operating Temperature -40F to 158F (-40C to 70C)
  • Availability: 2 week lead time
